ABS+20%GF
Short-Glass-Fiber-Reinforced Thermoplastic Composite
ABS+20%GF is a cost-effective ABS-based thermoplastic composite reinforced with 20 wt.% short glass fibers. It offers higher stiffness, improved dimensional stability, and better heat resistance than unfilled ABS, making it suitable for large-format prototypes, patterns, jigs, fixtures, and low-temperature tooling operating at up to approximately 80°C.
Key Features

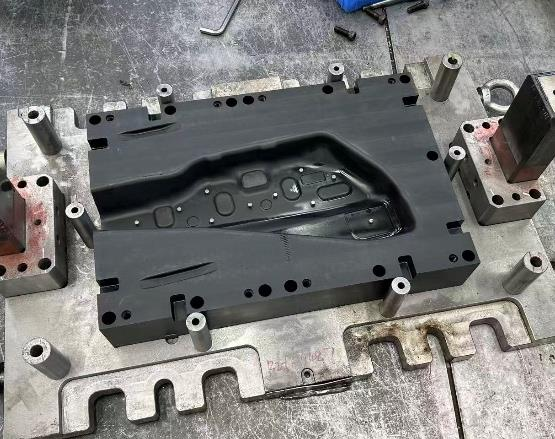

-Suitable for automotive styling models, vacuum-forming tools, casting patterns, assembly fixtures, and large prototypes.
Contact Sales
Key Features
-Suitable for automotive styling models, vacuum-forming tools, casting patterns, assembly fixtures, and large prototypes.
Material Properties
Material Name | ABS+20%GF |
XY Tensile Strength | 50-70MPa |
Z Tensile Strength | |
Flexural Strength | 75-110MPa |
Heat Deflection Temperature | 101℃(214°F) |
Density | 1.20 g/cm³ |
Post Processing

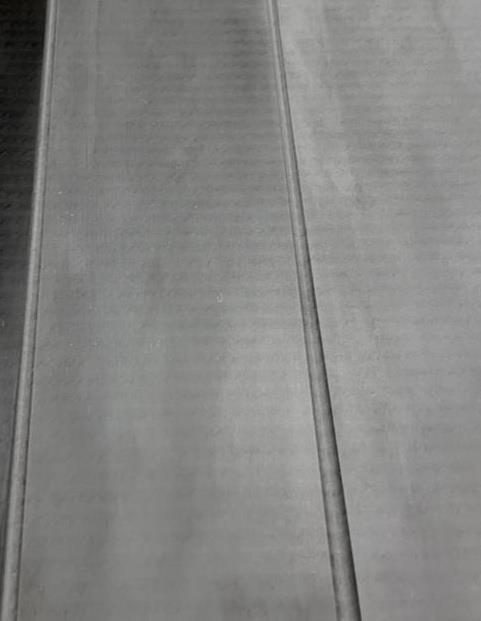

- CNC Machining & Surface Finishing
- ABS-GF20 parts can be CNC-machined, drilled, sanded, sealed, and coated to improve dimensional accuracy, surface quality, and functionality.
- Local dimensional accuracy down to approximately ±0.1–0.3 mm
- Smooth, uniform surfaces with reduced layer visibility
- Precision-machined holes, interfaces, and mounting features
- Improved vacuum tightness through sealing and coating
- Class A surface quality achievable with filling, priming, sanding, and polishing
- Enhanced wear resistance and service life with protective coatings
Final performance depends on part size, geometry, machining strategy, and finishing requirements.
