SLS Printing
SLS for nylon-based powder and TPU can be applied in functional parts
such as jigs and fixtures, housings etc.,
Our SLS Printing Services
SLS can be widely used in the industrial fields of automotive, medical, consumer electronics, etc., for the production of master molds, conceptual models, general components, and functional parts. It is applicable to various aspects such as automotive interior components, precision manufacturing of small batches, and product prototypes.
- Material Options
Materials
Maximum Printing Size
Lead Time
Tolerance
Color
Distortion Temperature
Material Properties

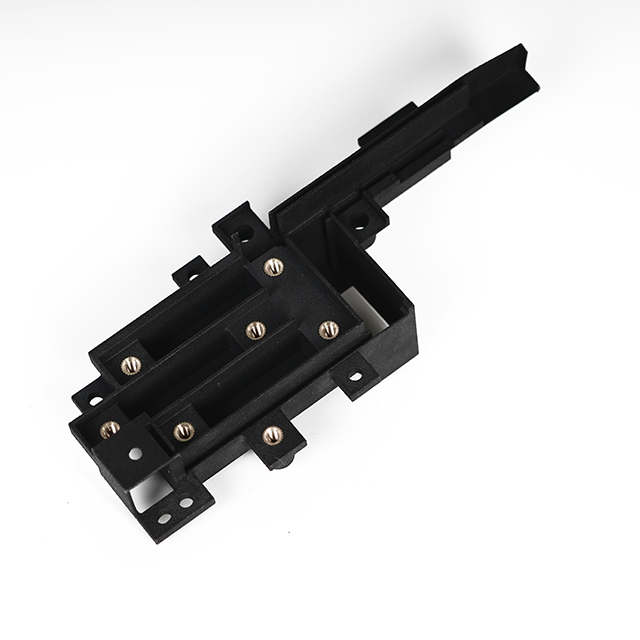

PA6 Glass-filled
350*350*400mm
7 working days
±300μm or ±0.3%mm
Black
203℃
Elongation at break: 1.7%

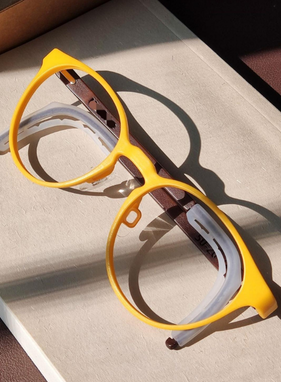

PA 11
350*350*400mm
7 working days
±300μm or ±0.3%mm
White
145℃
Elongation at break: 36%

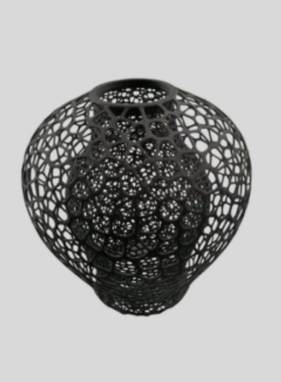

PA12
350*350*400mm
7 working days
±300μm or ±0.3%mm
White, grey-black
145℃
Elongation at break: 36%
PA12 Glass-filled
350*350*400mm
7 working days
±300μm or ±0.3%mm
Light grey
160℃
Elongation at break: 5%
Additional Post Processing

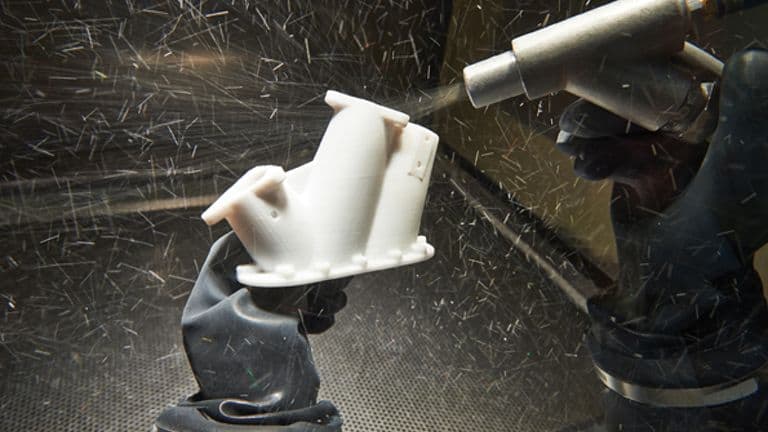

- Sand Blasting
- Sand blasting is applied to improve aesthetic appearance of the printed part. Surface treatment technique includes vibro tumbling, shot blasting, abrasive flow machining, plating etc.

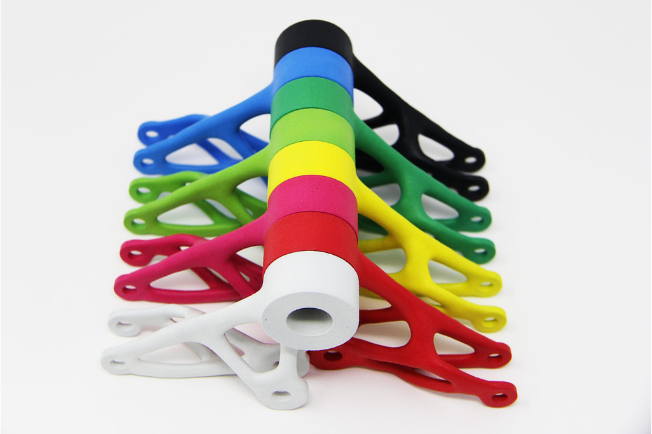

- Color dyeing
- Different colors can be achieved according to customer requirements.
- Vampor smoothing
- Printed parts can be moved to a smoothing chamber, using the controlled evaporation, allowing a vaporized smoothing agent condenses on the parts surface to create a chemical melt. Once finished, parts show a much bright and smooth surface finish.
